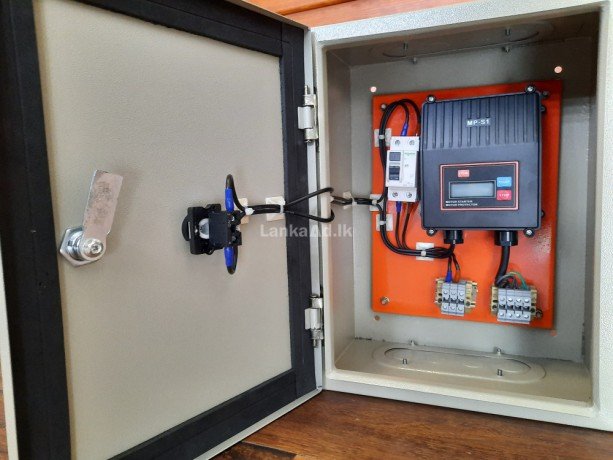

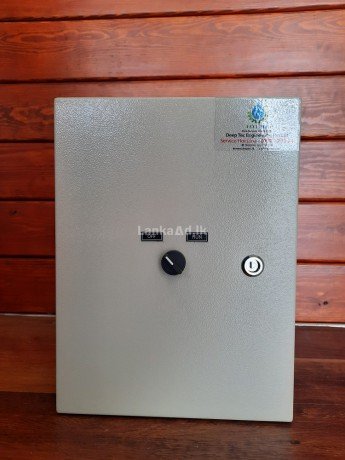

Supply & service Digital Control Panels for Tube Well Pumps Business
3 years ago - Services - MalabeBrief introduction :

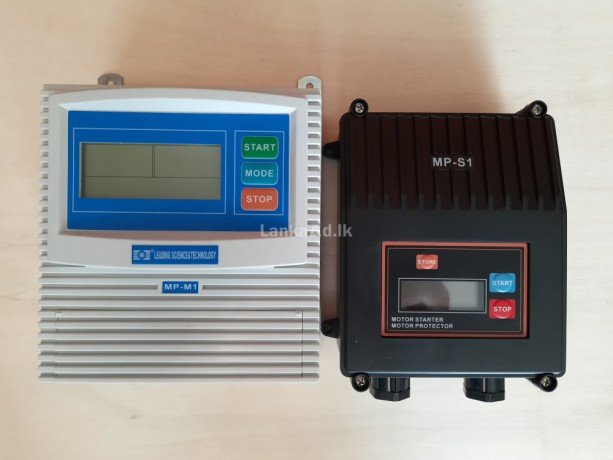

Single phase motor protector MP-S1 is our hot selling item due to it’s smart design and economic size ,people like it very much because price is fair enough and it has high quality . It’s very easy for users to set the over load ,dry run ampere because it has one push button calibration .
Product function / features:
· Model : MP-S1
· Application : Start& protect single phase pump, DOL
· Main technical data :
· Rated input voltage : AC220V-AC240VSingle phase 50HZ/ 60HZ
· Rated output : 0.37kw-2.2kw(0.5hp-3hp)
· Product function / features : Over load protection
§ Motor stalled protection
§ Dry run protection with sensor free
§ Under voltage protection
§ Over voltage protection
§ Transient surge protection
§ Memory function when power off & recovery
§ LCD screen displaying pump running status
§ Push button calibration
§ Reserved space for installing pump start capacitor
· Main installation data :
· Working temperature : -25℃– +55℃
· Working humidity : 20%–90%RH, no drips concreted
· Degree of protection : IP54
· Install position : Wall mounting
· Unit dimension (L x W x H) : 152 x 125 x 70 mm
Typical usage scenarios:
· Houses
· Flats
· Holidays houses
· Farms
· Water supply from wells
· Irrigation's of greenhouses, gardens, agriculture
· Rainwater reuse
