Brief introduction :

Single phase motor protector MP-S1 is our hot selling item due to it’s smart design and economic size ,people like it very much because price is fair enough and it has high quality . It’s very easy for users to set the over load ,dry run ampere because it has one push button calibration .

Product function /features:

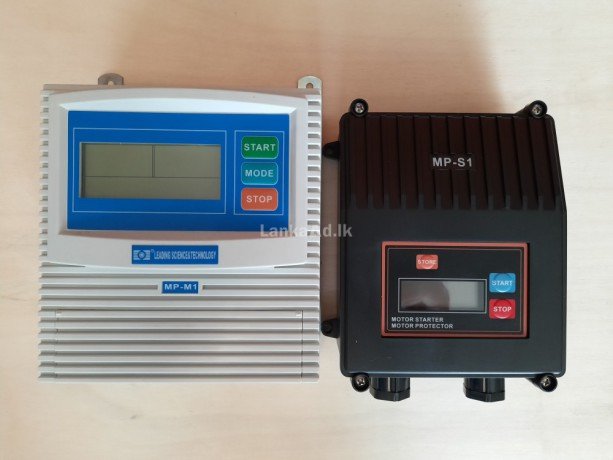

· Model : MP-S1

· Application : Start& protect single phase pump, DOL

· Main technical data :

· Rated input voltage : AC220V - AC240V Single phase 50HZ/ 60HZ

· Rated output : 0.37kw-2.2kw(0.5hp-3hp)

· Product function / features : Over load protection

§ Motor stalled protection

§ Dry run protection with sensor free

§ Under voltage protection

§ Over voltage protection

§ Transient surge protection

§ Memory function when power off & recovery

§ LCD screen displaying pump running status

§ Push button calibration

§ Reserved space for installing pump start capacitor

· Main installation data :

· Working temperature : -25℃– +55℃

· Working humidity : 20%–90%RH, no drips concreted

· Degree of protection : IP54

· Install position : Wall mounting

· Unit dimension (L x W x H) : 152 x 125 x 70 mm

Typical usage scenarios:

· Houses

· Flats

· Holidays houses

· Farms

· Waters upply from wells

· Irrigations of greenhouses, gardens, agriculture

· Rainwater reuse

· Industrial plants

Waste water tank /Sewage sink
